Inspections & diagnostic reports
Start inspections, view findings, and preview or download diagnostic reports and packages.

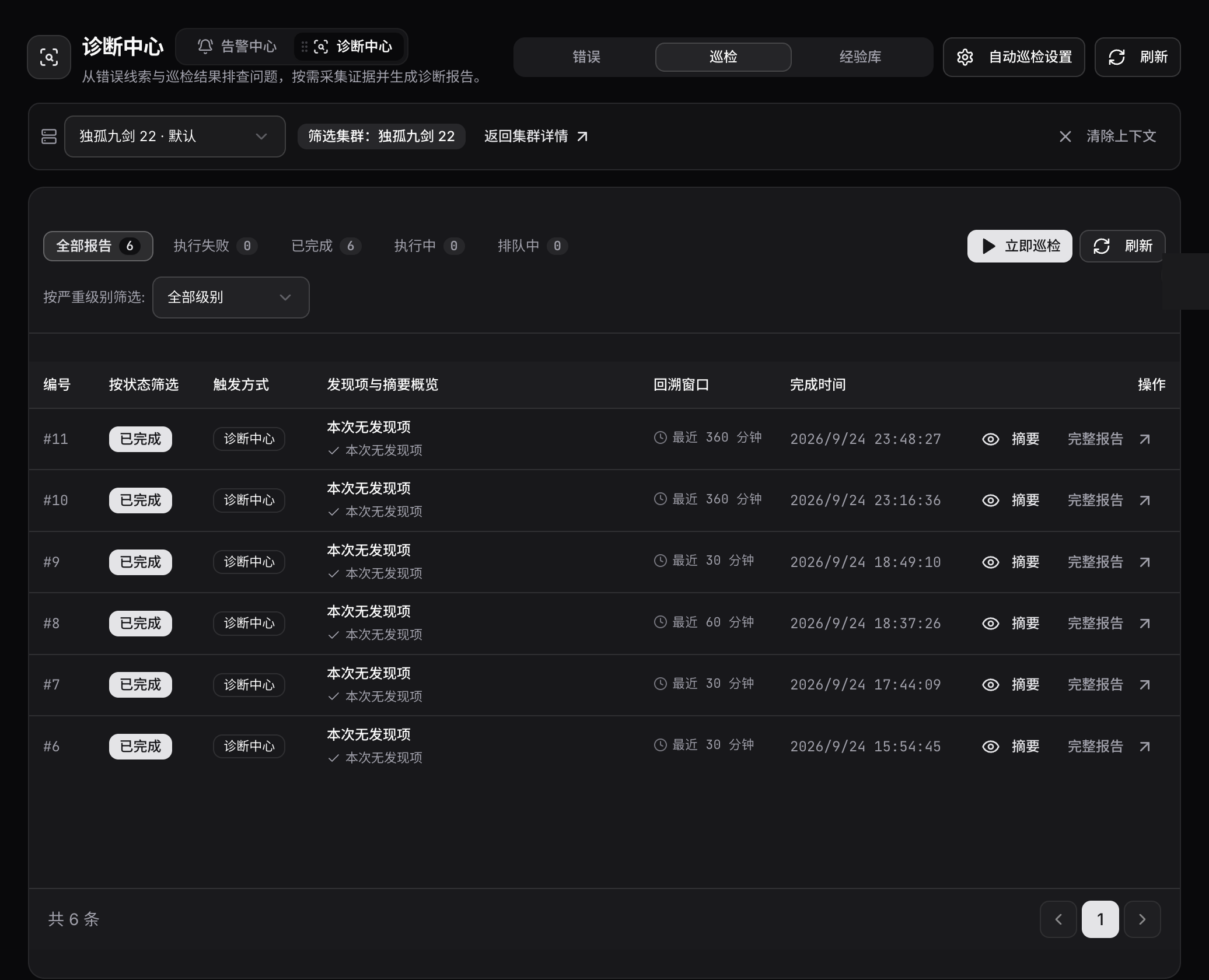

Web UI Alerts & Diagnostics → Diagnostics → Inspections (/diagnostics?tab=inspections). View check records here, then open reports.
Start an inspection
- Select the cluster to inspect at the top of the page, then click Inspect now.
- Set Inspection time range (5–1440 minutes, default 30 minutes), Error trigger threshold (1–1000, default 1), and choose resources to collect this time.
- After starting, view status, findings summary, and lookback window in check records. Click Summary for this check, or Full report to open inspection details.
An inspection first creates a check record, then starts diagnostic package collection for the selected resources. If collection fails to start, the inspection report may still be generated; rely on check records and task status.

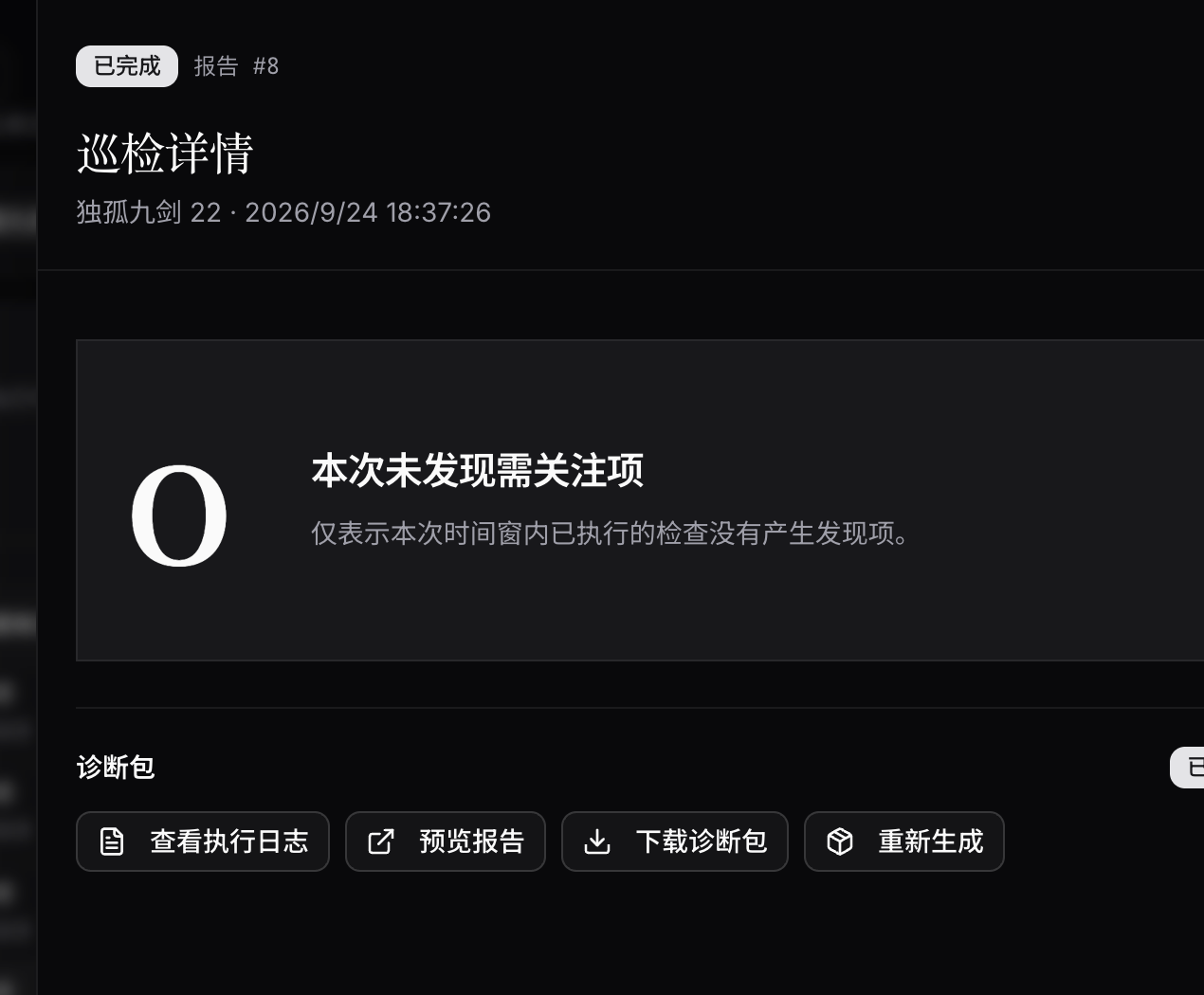

The Diagnostic package section in inspection details shows collection status. Click View execution logs to verify steps; after success, click Preview report to open HTML, or Download diagnostic package to save logs and other files. When a package already exists, you can Regenerate; when there are findings but no package yet, choose Generate diagnostic package and report in one click.

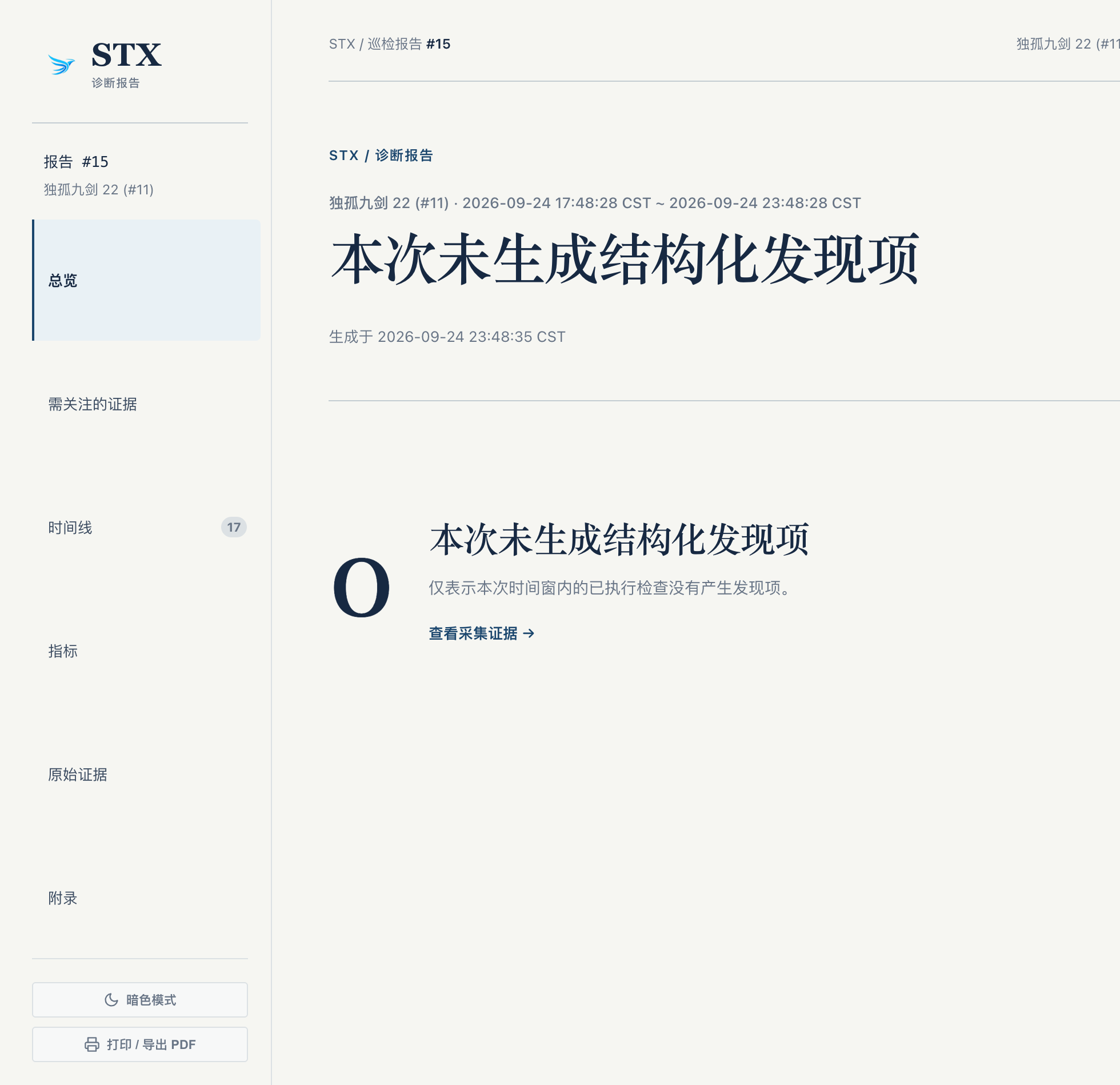

Read the HTML report
| Tab | Content |
|---|---|
| Overview | Time range and findings summary for this check. |
| Evidence to review | View observed values and related evidence by finding. |
| Timeline | Events during collection in time order. |
| Metrics | Sample values, thresholds, and trends by metric and instance; a single sample point does not draw a trend; gaps break the curve. |
| Raw evidence | Browse errors, inspections, configuration, metrics, thread stacks, alerts, and process info by category. Configuration files can be switched; credentials in preview are masked. |
| Appendix | Task, execution steps, and cluster information. |
"No structured findings generated this time" only means checks executed in this time range produced no findings—it does not mean no raw data was collected. Check Raw evidence for on-site content; for steps not executed or failed, verify in Appendix.
Use the bottom-left control to switch light or dark mode. For PDF, use Print / Export PDF. For logs, thread stacks, and other files outside HTML, download the diagnostic package from inspection details. Before sharing, review host addresses, logs, and configuration; masked credentials in config preview do not mean the entire package is safe to publish.
To start from error clues, see Errors; for existing fixes, see Troubleshooting library.
