ARCHITECTURE

STX CLI

Use the stx command to connect to STX Server, query clusters, view logs, and perform operations.

The STX client and server share the same binary: run stx server to start the service; run stx login, stx cluster list, and similar commands to operate a remote STX instance. You can copy this file to another Linux machine with the same architecture and use only its CLI capabilities—you do not need to log in to the STX install machine. This is similar to using the hadoop command after deploying Hadoop. Operations that must run on managed hosts are still dispatched by STX Server through stx-agent.

Try a few commands

Assume STX Server is at 10.0.0.10. On a machine with the CLI installed, run:

stx login --server http://10.0.0.10:17800
stx whoami
stx cluster list --output table
stx sync job list --status FAILED --output table

login prompts for a username and password. Query commands do not change the remote environment. After you see a failed job ID, use stx sync job logs <job-id> --lines 40 to view logs; run stx sync job logs --help for available flags. STX CLI does not diagnose failures for you—a person or AI Agent can continue troubleshooting from the output.

To let an AI Agent call stx, run stx skill install on your machine (see Install Skill for AI Agents). The Skill is local command documentation, not another service.

Haven't installed the CLI yet? See Install STX CLI in the quick deploy guide and follow the steps for your layout (same machine as STX Server or separate).

Client and server

The default STX Server API address is http://10.0.0.10:17800 (sample IP). When using the CLI on the same machine, you can also connect to http://127.0.0.1:17800. After login, use read-only commands to inspect the environment first; write operations require explicit confirmation.

note

stx server starts STX Server. Copying stx to another machine and running stx login, stx host …, and similar commands does not start the service.

How it works

1. Use stx login to sign in to an STX install machine API (default port 17800).
2. After a successful login, your machine stores that environment's address and token (see Namespaces below).
3. Subsequent commands such as stx host … and stx cluster … call the same HTTP API with that token. When managed hosts must be touched, STX Server still dispatches through stx-agent.

The CLI talks only to STX Server. To change SeaTunnel on managed hosts, STX Server still goes through stx-agent (the probe process on each host)—the CLI does not bypass that layer.

Login and namespaces

Default local config path:

• $XDG_CONFIG_HOME/stx/config.yaml, or
• ~/.config/stx/config.yaml

One config file can hold multiple namespaces: each maps to a Server address + login state, so you can switch between test and production.

# Login (prompts for username/password; flags and env vars also work)
stx login --server http://10.0.0.10:17800

# Show current identity
stx whoami

# List / switch local namespaces
stx namespace list
stx namespace use <name>

stx logout

Examples

Scenario	Approach
One STX environment	stx login --server http://10.0.0.10:17800, then run business commands
Test and production	Log in to different --server values, switch with stx namespace use …
One-off environment	Add --namespace on a command, or set STX_SERVER / STX_NAMESPACE

Common environment variables: STX_SERVER, STX_NAMESPACE, STX_TOKEN, STX_TIMEOUT (default request timeout 30s), STX_OUTPUT, STX_USERNAME.

Command risk model

Operations are registered on the server with a risk level. What that means for the CLI:

Level	Typical meaning	CLI behavior
R0	Queries, pre-checks, and other read-only or low-impact actions	Runs immediately; no --confirm required
R1+	Create, update, start/stop, install, and other state-changing actions	Requires --confirm; otherwise rejected
Higher risk (some delete / restart operations)	Broader impact	Still requires --confirm; some operations also need server-side re-confirmation (below)

Write operations can also take:

• --idempotency-key: keep retries idempotent (CLI generates one if omitted)
• --confirmation-id: when the server returns "needs re-confirmation", pass the returned ID on the next run

# Read-only: list hosts
stx host list

# Write: confirmation required
stx host create --name node-1 --ip-address 10.0.0.21 --confirm
stx cluster create --name demo --deployment-mode hybrid --version 2.3.13 --confirm
stx cluster restart 6 --confirm

Output formats

Global flags (root command):

Flag	Description
--output / -f	json (default), table, yaml, raw
--pick	Keep only the listed top-level fields in the result (comma-separated)

Use table for human browsing; use default json for scripts.

stx host list --output table
stx whoami --pick username,roles

Web UI, CLI, and AI Agents

	Web UI	CLI
Entry	Browser → install machine 17880	Terminal / AI Agent → install machine API 17800
Best for	Visual workflows, guided install, topology and progress	Scripts, batch jobs, CI; models driving STX via commands
Auth	Browser session	Token from login stored in a local namespace
Write protection	Confirmation dialogs in the UI	--confirm (and re-confirmation when required)

People and AI Agents follow the same commands and confirmation rules. AI Agents call stx through the local Skill—they do not simulate clicking the Web UI.

Install Skill for AI Agents

On the same user account that runs the AI Agent, install local documentation files (does not contact the server; you still need stx login before querying or changing the environment):

stx skill install
stx skill status --output table

--target	Path
claude	~/.claude/skills/stx/SKILL.md
agents	~/.agents/skills/stx/SKILL.md
all (default)	Writes to both

install does not overwrite existing files; after upgrading the CLI, run stx skill update. Language follows your locale by default; use --language zh-CN or en.

Audit logs

Audit logging is optimized for CLI use (especially AI Agent calls): every remote stx invocation should be traceable. A model might stop a cluster or change config by mistake; without a clear source and request ID, it is hard to tell who—or which call—caused a problem later.

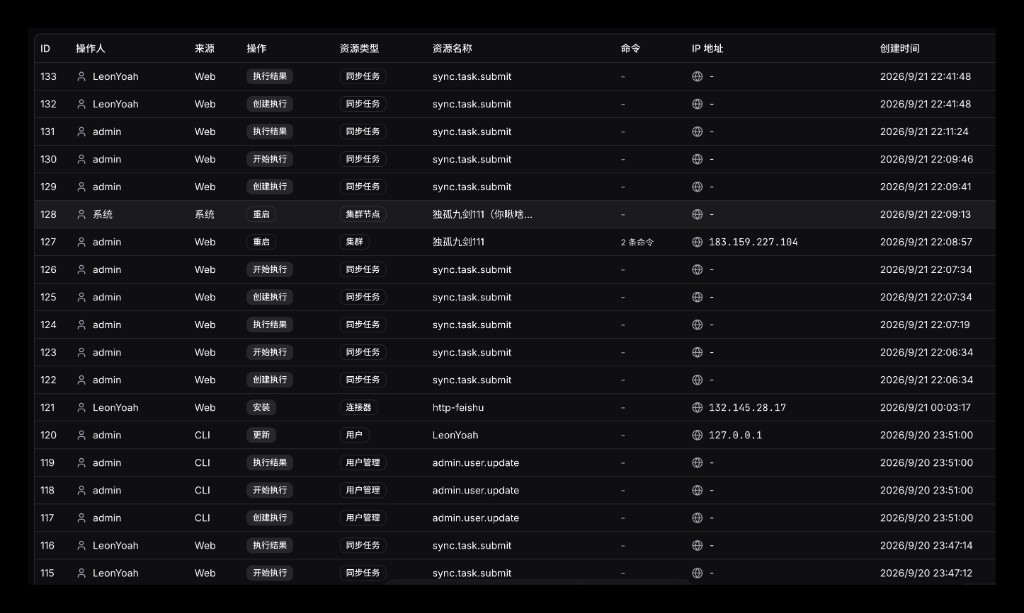

In the Web UI audit list, Source shows CLI / Web / System, so you can tell command-line from page-initiated actions at a glance:

What each call sends

When the CLI accesses STX Server, it automatically includes:

Header	Purpose
X-STX-Client: cli	Marks the source as the command line (not Web UI)
X-Request-ID	Request ID for this invocation; commands dispatched to stx-agent in the same operation share this ID for end-to-end tracing

Write operations also send confirmation / idempotency headers (see --confirm above). Sensitive parameters are redacted before storage—passwords should not appear in audit records.

Two record types

Record	What it shows	Typical query
Audit log	Who (user), which client, what resource, what action, outcome	stx audit list --client_type cli
Command log	Commands STX Server actually sent to stx-agent and their status	stx audit command list --request_id <id>

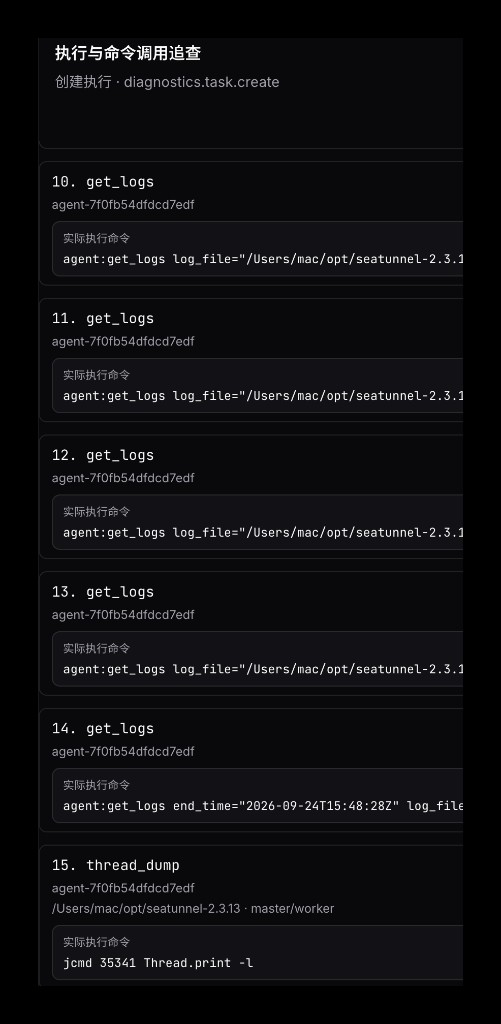

Details include execution and command trace: for one operation (e.g. diagnostics.task.create), which commands the local stx-agent actually ran—such as get_logs, thread_dump (including jcmd … Thread.print)—so you can verify the AI or script issued the right instructions.

Typical path when investigating "what did the AI / script just run?":

1. stx audit list --client_type cli --size 50 (add --result_status failed or a time range if needed)
2. Take request_id from an entry
3. stx audit get <audit-entry-id> for details; then stx audit command list with the same request_id to see whether the probe executed successfully

The Web UI Audit log page filters on the same data (including client type). CLI and Web UI query the same records.

# CLI-sourced operations only
stx audit list --client_type cli --size 50 --output table

# stx-agent-side commands for one request
stx audit command list --request_id <request_id> --output table

Minimal getting-started path

# 1. Reach STX API
curl -sS http://10.0.0.10:17800/api/v1/health

# 2. Login
stx login --server http://10.0.0.10:17800 --username admin

# 3. Read-only exploration
stx whoami
stx host list --output table

# 4. Writes (always use --confirm)
stx cluster create --name demo --deployment-mode hybrid --version 2.3.13 --confirm

For host and cluster operations, see Host management and Cluster management. For process layout and ports, see System architecture.
