Plugin Marketplace
Browse SeaTunnel connectors, download them with required dependencies in one click, then install onto clusters.
Web UI Packages & Plugins → Plugin Marketplace (/plugins). Browse connectors, download JARs and required Auxiliary Dependencies to the machine that runs STX Server, then install them onto every node of a chosen cluster.
Use the top tabs to switch back to Package Management. Workbench connector templates come from plugins already installed on the cluster; if a JAR is missing, download and install it here first.

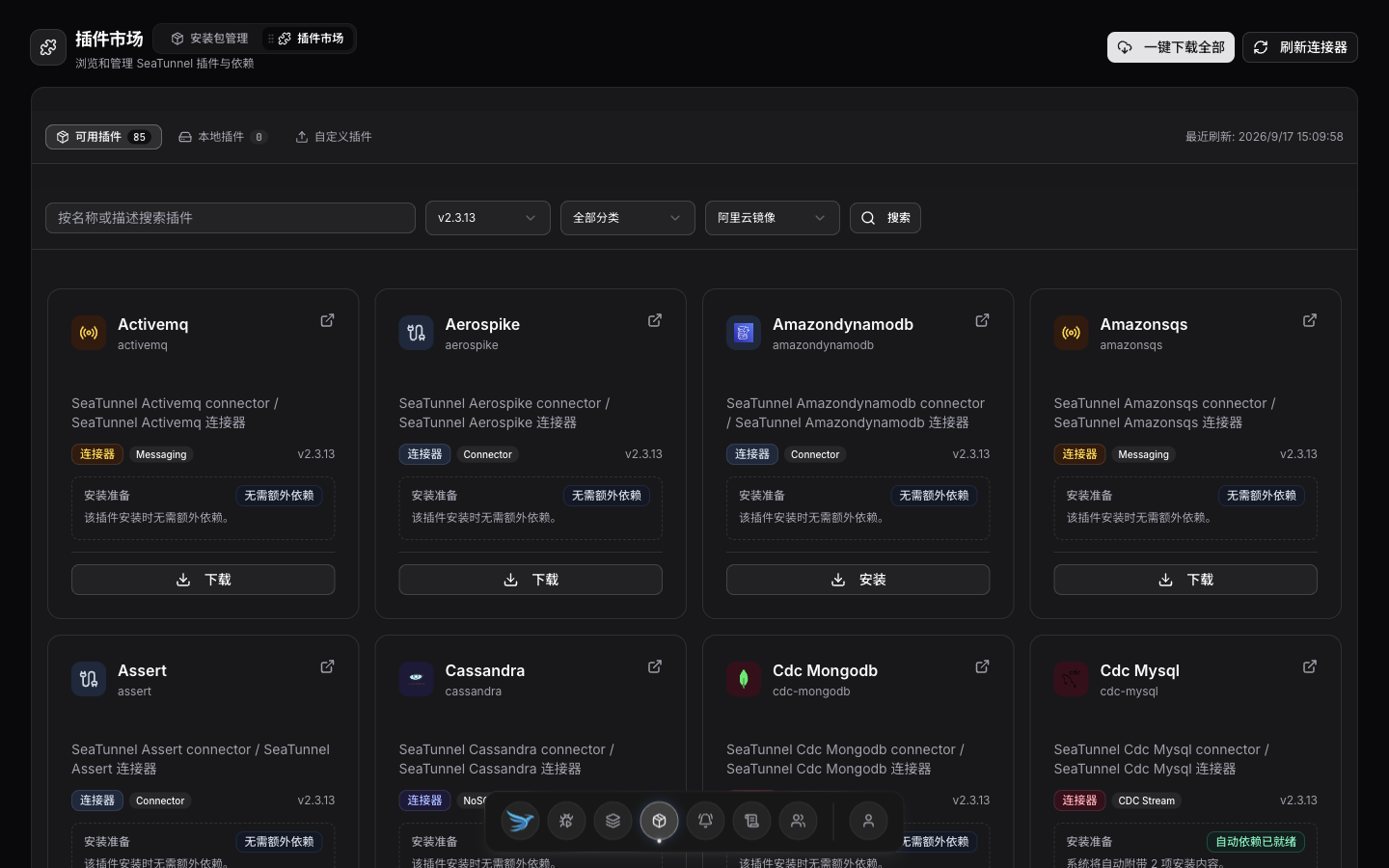

Available Plugins and Local Plugins
| Tab | What it does |
|---|---|
| Available Plugins | Browse the official catalog; search by name and filter by SeaTunnel version, category, and mirror |
| Local Plugins | JARs already downloaded locally; install onto a cluster or delete |
Header actions include Download All, Refresh Connectors (available) or Refresh (local). Downloads use the selected mirror; catalog refresh still uses official Maven metadata.
| Card fields | Meaning |
|---|---|
| Name / category / version | Connector identity and matching SeaTunnel version |
| Install readiness | No extra dependencies, Scenario Required, or Auto dependencies ready |
| Download / Install | Download first when missing locally; install onto a cluster when already cached |
Transform features usually ship inside seatunnel-transforms-v2.jar in the SeaTunnel package—no separate marketplace download.
Auxiliary Dependencies (drivers in one click)
Many connectors need JDBC drivers or other libraries beyond their own JAR. Open the plugin details and switch to Auxiliary Dependencies:
| Case | What to do |
|---|---|

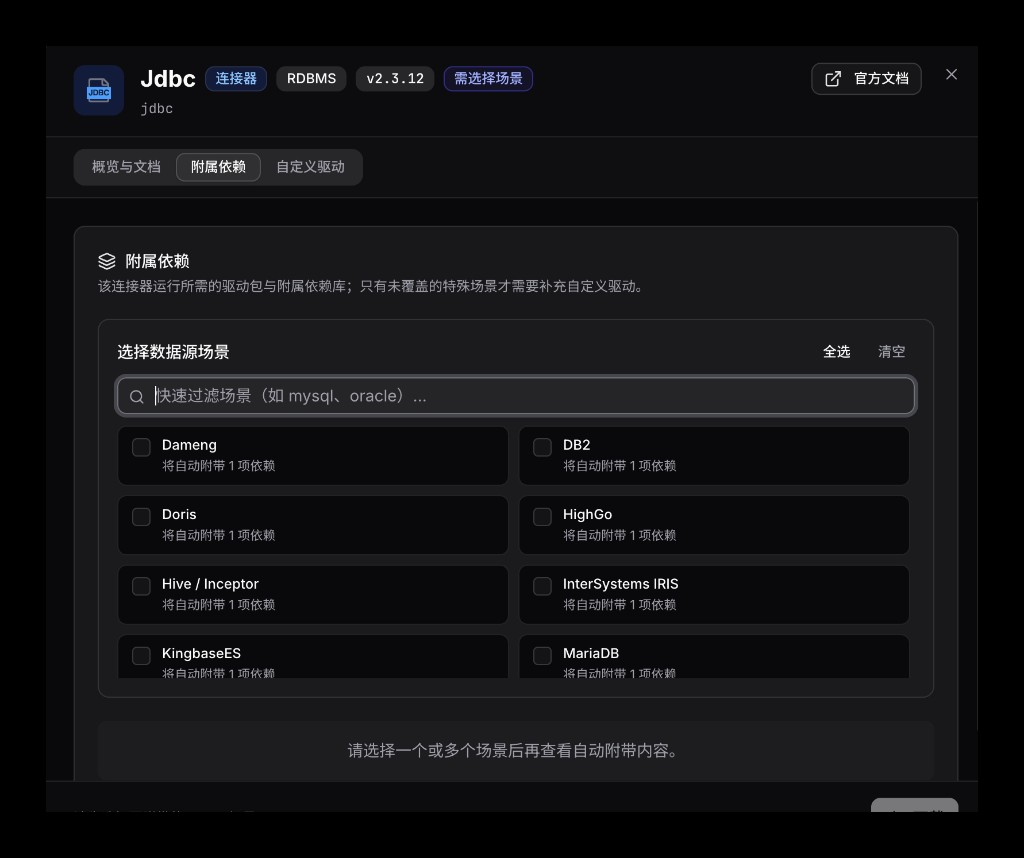

| Badge shows Scenario Required (for example Jdbc) | Under Select Data Source Scenarios, pick MySQL, Oracle, and so on so the system attaches the matching dependencies, then Download |

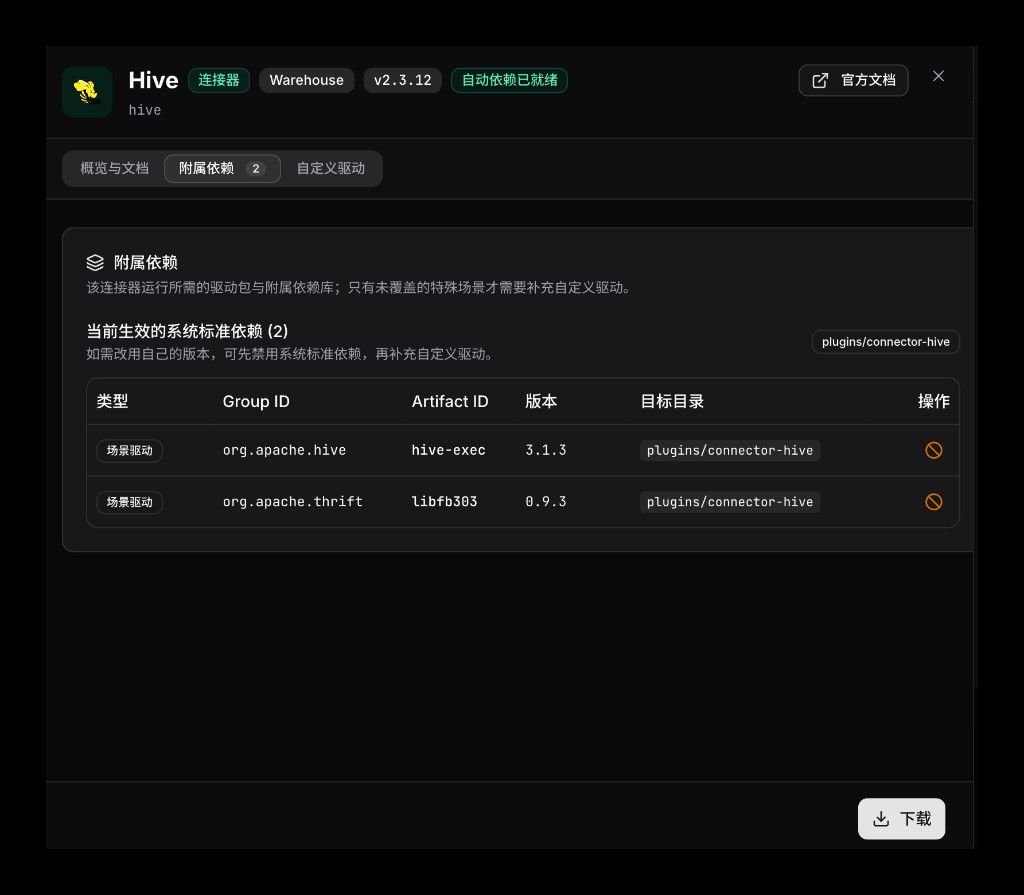

| Badge shows Auto dependencies ready (for example Hive) | Review Currently active system standard dependencies, then Download |
| Official templates do not cover a special version | Switch to Custom Driver to add your own; disable system standard dependencies first if you need to replace them |
After you pick scenarios, the list shows each Scenario Driver/Lib with Group ID, Artifact ID, version, and target directory (for example plugins/connector-hive). Download pulls the connector and these dependencies together; install to a cluster pushes them together as well.
Download first, then install onto a cluster
Typical flow:
- On Available Plugins, pick the SeaTunnel version that matches the target cluster.
- If the badge says Scenario Required, choose data source scenarios under Auxiliary Dependencies first.
- Click Download; track progress under Local Plugins.
- On Local Plugins, open Manage Plugin / Install to Cluster and choose a version-matched cluster.
- If
libdependencies are included, the UI may prompt you to restart the cluster after install.
| Location | Default |
|---|---|
| Plugin cache | ./lib/plugins (relative to the STX Server working directory) |
After install, connector JARs land under the node SeaTunnel connectors/ directory; some dependencies go to lib/ or a matching plugins/ subdirectory. stx-java-proxy on the node loads these JARs for workbench schema probes and related calls.
Cluster details → Installed plugins lists and uninstalls plugins, and can send you back here to add more. The one-click install wizard can also select plugins to install with the cluster.
Local plugin list
| Column | Meaning |
|---|---|
| Name / category / version | Cached connector |
| Installed clusters | Clusters that already have this plugin |
| File size | Local JAR size |
| Actions | Manage Plugin (install), Delete (optionally uninstall from selected clusters) |
You can select multiple rows for Batch Install. An empty list points you back to Available Plugins to download first.
Before a cluster upgrade, plugins required by the target version must already be local; the UI prompts you to open the marketplace when they are missing. See Cluster management for install and upgrade, and Debug workbench for job-side usage.
