Quick deploy STX
Install STX on Linux, connect a managed host, and use STX CLI on the same machine or another.
After you install STX on a Linux machine, you get the Web UI, STX Server, and the gRPC service that stx-agent needs. This guide shows how to install STX with the install scripts.
Check before installing
| Check | Requirement |
|---|---|
| System | Linux, glibc ≥ 2.17; Ubuntu / Debian, Rocky / Alma / RHEL 8+, CentOS 7, and similar. systemd recommended; on containers / CI without systemd, pass --no-systemd |
| Architecture | amd64 or arm64; CentOS 7 supports amd64 only |
| Network | Browsers can reach the STX install machine on 17880; managed hosts can reach 17800 and 17890 on it |
| Disk | About 700 MB on the install-directory partition; about 2.2 GB with the local monitoring stack |
| Commands | bash, curl, tar, gzip, sha256sum; no Node.js or python3 needed (the bundle ships Node) |
| Privileges | root (run the install scripts with sudo) |
The one-click installer targets Linux. macOS and Windows are for local development—not what this install script is built for.
1. One-click install
Run one command on the Linux machine that will be your STX install machine. The default install directory is /opt/stx.
# Networks in China (recommended)
curl -fsSL https://v4.gh-proxy.org/https://github.com/LeonYoah/stx/releases/latest/download/install-online.sh | sudo bash
# Direct access to GitHub
curl -fsSL https://github.com/LeonYoah/stx/releases/latest/download/install-online.sh | sudo bash
The script downloads the offline bundle for your CPU architecture and glibc version, verifies its sha256, and installs it; systems with glibc < 2.28, such as CentOS 7, get the CentOS 7 bundle automatically. Without -y it asks for the ports, the advertised IP, the database, and the admin password; press Enter to accept each default.
Without systemd (some containers or CI), pass --no-systemd. Non-root additionally needs a writable --install-dir.
Pick a download line
By default the script probes the lines, uses the fastest one, and falls back to the next on failure. Pin a line with --mirror (number or name, or your own proxy prefix):
| No. | Name | Address |
|---|---|---|
| 1 | gh-proxy | https://gh-proxy.org (Cloudflare main) |
| 2 | v4 | https://v4.gh-proxy.org (Cloudflare optimized, recommended, IPv4 only) |
| 3 | v6 | https://v6.gh-proxy.org (Cloudflare optimized, IPv6) |
| 4 | cdn | https://cdn.gh-proxy.org (Fastly CDN) |
| 5 | axisnow | https://axisnow.gh-proxy.org (AxisNow) |
| 6 | github | Direct GitHub |
curl -fsSL https://v4.gh-proxy.org/https://github.com/LeonYoah/stx/releases/latest/download/install-online.sh | sudo bash -s -- --mirror v4
Common flags
Append flags to the command, for example curl -fsSL ... | sudo bash -s -- -y --install-dir /data/stx:
| Flag | Effect |
|---|---|
-y | No prompts; use defaults and flag values |
--install-dir /opt/stx | Install directory, default /opt/stx |
--admin-password xxx | Initial admin password |
--frontend-port / --http-port / --grpc-port | Web UI / HTTP API / gRPC ports, default 17880 / 17800 / 17890 |
--external-ip 10.0.0.10 | Advertised IP or host name |
--db-type sqlite|mysql|postgres | Database, default sqlite; postgres can also be written pg |
--db-host / --db-port / --db-user / --db-password / --db-name | MySQL / PostgreSQL connection; the password can also come from STX_DB_PASSWORD |
--without-observability | Skip the local monitoring stack (Prometheus / Alertmanager / Grafana) |
--prometheus-port / --alertmanager-port / --grafana-port | Monitoring ports, default 9090 / 9093 / 3000 |
--mirror v4 | Pin a download line (one-click install / download-bundle.sh only) |
--variant amd64|arm64|centos7 / --version <tag> | Bundle variant / version (one-click install / download-bundle.sh only) |
--without-node | Use the host Node ≥ 18.18 instead of the bundled one |
--service-user stx | Run the service as this user (default root) |
--no-autostart / --no-systemd / --no-start | No start on boot / no systemd unit / do not start after install |
With an external database:
curl -fsSL https://v4.gh-proxy.org/https://github.com/LeonYoah/stx/releases/latest/download/install-online.sh \
| sudo bash -s -- --db-type postgres --db-host 10.0.0.5 --db-user stx --db-name stx
Installing needs root. Without sudo the scripts exit before any check or prompt and print the full command with sudo. Non-root works only with a writable --install-dir together with --no-systemd.
Check the status after install:
/opt/stx/bin/status.sh
# When installed with systemd:
systemctl status stx

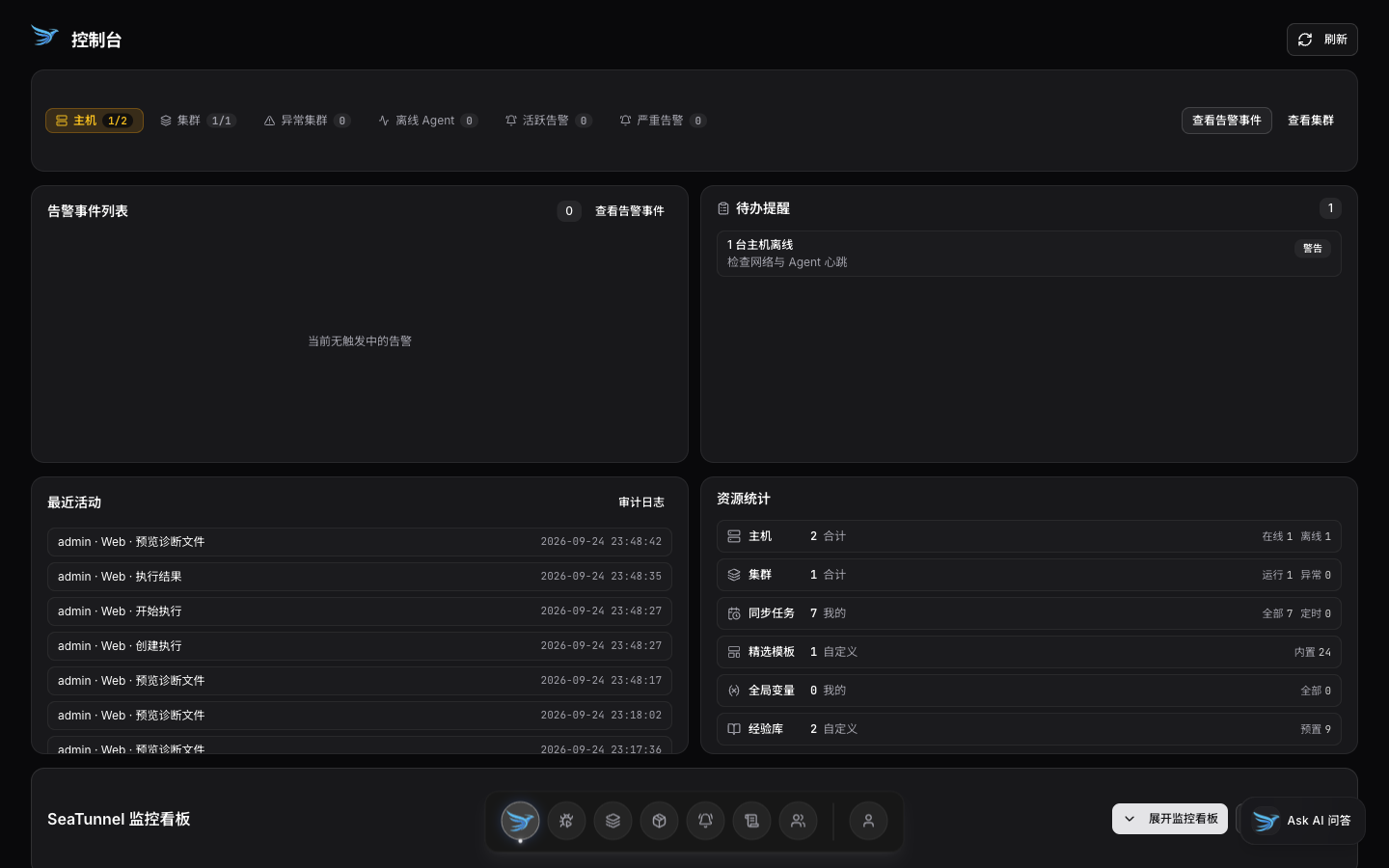

2. Open the Web UI

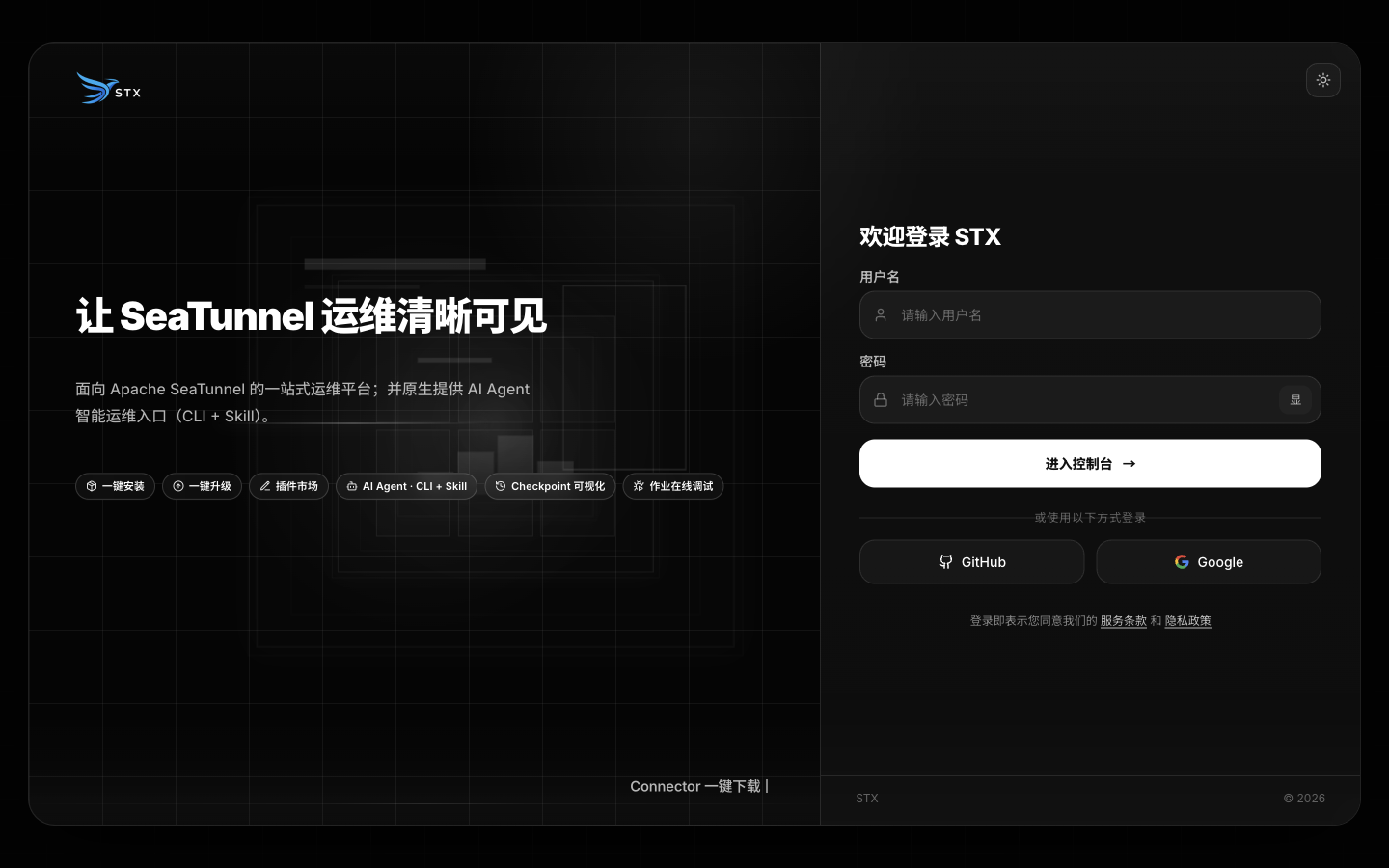

If the STX install machine is 10.0.0.10, open http://10.0.0.10:17880 and sign in as admin with the password set during install (admin123 if you pressed Enter; change it soon after signing in).
| Service | Default port | Who needs access |
|---|---|---|
| Web UI | 17880 | People using a browser |
| STX Server HTTP API | 17800 | Web UI, CLI, and install scripts on managed hosts |
| stx-agent gRPC | 17890 | stx-agent on managed hosts |

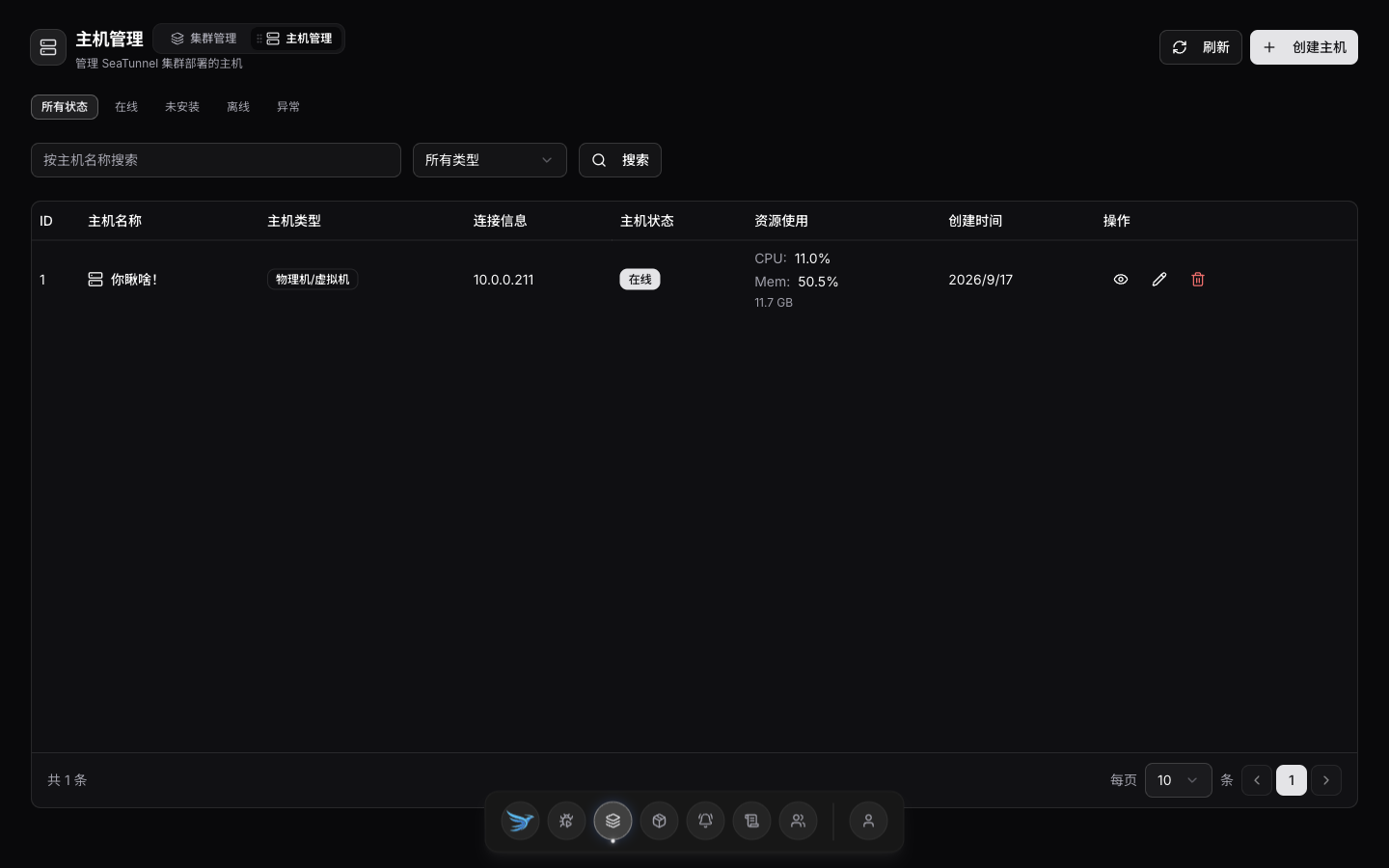

The install summary ends with the next steps; for connecting hosts and creating clusters see Host management and Cluster management.
Install STX CLI
The STX client and server share the same binary: stx server starts STX Server; stx login, stx cluster list, and similar commands act as the client. Think of it like the hadoop command after deploying Hadoop.
Client and server on the same machine
After a full STX install, use the binary in the install directory—no separate CLI install:
/opt/stx/stx login --server http://127.0.0.1:17800
/opt/stx/stx cluster list --output table
If you used a different --install-dir, replace /opt/stx with your path. Login prompts for username and password; credentials are stored under the user who ran the command.
Separate client and server
If the STX install machine is 10.0.0.10 and another Linux machine only needs remote CLI access: when both machines share the same CPU architecture, copy /opt/stx/stx from the install machine. On the client machine:
chmod +x ./stx
./stx login --server http://10.0.0.10:17800
./stx cluster list --output table
Replace user with an SSH account that can read the file. The client does not need the Web UI, Node.js, or stx-agent. Copying this file does not start STX Server on the client; the client only needs reachability to port 17800 on the install machine.
Without SSH, copy the same file via USB or internal file transfer, then continue from chmod +x ./stx. The client install step can be offline; running remote commands still requires connectivity to STX Server.
Run uname -m on both machines. If one is x86_64 and the other aarch64, you cannot copy the install machine's binary. On a machine with network access, download the Release artifact matching the client's architecture and your STX Server version (stx-linux-amd64 or stx-linux-arm64), copy it to the client, and name it stx. Copying only the binary is for CLI use—it does not install the full service stack.
Next, see STX CLI. For AI Agents, run stx skill install (see Install Skill for AI Agents).
Other install methods
Offline install
Each Release ships three complete offline bundles containing STX Server, the Web UI, stx-agent, Node, and the local monitoring stack, each with a .sha256 file. Pick by STX install machine:
| Bundle | Target system | How to tell |
|---|---|---|
stx-offline-linux-amd64.tar.gz | x86_64, glibc ≥ 2.28: Ubuntu 20.04+, Debian 10+, Rocky / Alma / RHEL 8+, and similar | uname -m prints x86_64; first line of ldd --version ≥ 2.28 |
stx-offline-linux-arm64.tar.gz | aarch64, glibc ≥ 2.28 | uname -m prints aarch64 |
stx-offline-linux-amd64-centos7.tar.gz | x86_64, glibc < 2.28: CentOS 7, RHEL 7 | first line of ldd --version shows 2.17 or similar |
These are the fixed names of the latest Release. For a specific version the file is named like stx-vX.Y.Z-linux-amd64-offline.tar.gz, and latest/download in the URL becomes download/vX.Y.Z.
Download on a machine with Internet access, using any of the 6 lines (whichever is fastest). CentOS 7 example:
F=stx-offline-linux-amd64-centos7.tar.gz # replace with the file you need from the table
U=https://github.com/LeonYoah/stx/releases/latest/download/$F
wget "https://gh-proxy.org/$U" # 1) Cloudflare main
wget "https://v4.gh-proxy.org/$U" # 2) Cloudflare optimized (recommended, IPv4 only)
wget "https://v6.gh-proxy.org/$U" # 3) Cloudflare optimized (IPv6)
wget "https://cdn.gh-proxy.org/$U" # 4) Fastly CDN
wget "https://axisnow.gh-proxy.org/$U" # 5) AxisNow
wget "$U" # 6) GitHub direct
# fetch the checksum over the same line, for example:
wget "https://v4.gh-proxy.org/$U.sha256"
Or let the script probe and download: curl -fsSL https://v4.gh-proxy.org/https://github.com/LeonYoah/stx/releases/latest/download/download-bundle.sh | bash -s -- --variant centos7.
Copy both files to the STX install machine and install:
sha256sum -c stx-offline-linux-amd64-centos7.tar.gz.sha256
tar -xzf stx-offline-linux-amd64-centos7.tar.gz
cd stx-*-offline/
sudo ./install.sh
The common flags are the same as for the one-click install (for example sudo ./install.sh -y --db-type postgres ...; add --no-systemd when needed). The download flags --mirror, --variant, --version, and --bundle-file do not apply to install.sh, which installs the bundle in the current directory. Offline bundles default to installing from the package contents—you usually do not need an extra --offline flag.
This installs the STX control plane only. To install SeaTunnel clusters offline, also prepare a SeaTunnel offline asset bundle (package ± plugins) on a networked STX, then copy and import it.
Docker Compose
mkdir -p stx-docker && cd stx-docker
# China
curl -fsSL https://v4.gh-proxy.org/https://github.com/LeonYoah/stx/releases/latest/download/stx-docker-compose.tar.gz | tar -xz
# Direct GitHub: drop the https://v4.gh-proxy.org/ prefix
cd docker
# If SeaTunnel is not on this host, set app.external_url / app.console_url in config.yaml to a reachable install-host IP (default 127.0.0.1)
mkdir -p data
docker compose up -d
China images: cp .env.cn.example .env then docker compose up -d. SQLite: docker compose -f docker-compose.sqlite.yml up -d.
Open the Web UI at http://127.0.0.1:17880. Host ports: 17880 / 17800 / 17890.
Single-container trial (no monitoring)
# GHCR
docker run -d -p 17800:17800 -p 17880:17880 -p 17890:17890 ghcr.io/leonyoah/stx-all-in-one:latest
# Huawei Cloud SWR
docker run -d -p 17800:17800 -p 17880:17880 -p 17890:17890 swr.cn-east-3.myhuaweicloud.com/stx/stx-all-in-one:latest
Start and stop
/opt/stx/bin/start.sh
/opt/stx/bin/stop.sh
/opt/stx/bin/status.sh
# With systemd install: systemctl restart stx
By default, start.sh starts monitoring based on observability.enabled and whether local monitoring components are installed. To disable explicitly: /opt/stx/bin/start.sh --observability off.
Install troubleshooting
| Symptom | What to check |
|---|---|
| Pre-flight check reports a port in use | In interactive mode, enter another port when asked; with -y, add --http-port and similar flags. Find the owner: ss -lntp | grep -E '17800|17880|17890' |
| Install failed | Check the failed step and the log /tmp/stx-install-*.log (or /opt/stx/logs/install.log) shown by the installer |
| glibc too old on CentOS 7 | Use stx-offline-linux-amd64-centos7.tar.gz; the one-click install picks it automatically |
| Host stays offline | From the managed host, verify reachability to 17800 and 17890 on the install machine; check firewall and security groups |
| Download slow or failing | Try another download line, or pin one with --mirror v4 |
| Install fails without systemd / in a container | Pass --no-systemd; for non-root also pass a writable --install-dir |
Opening 17800 shows no login page | Web UI defaults to 17880; 17800 is the HTTP API |
To develop STX locally instead of installing a Release, see the development notes in the source repository.
