Cluster management
Create cluster definitions, adopt existing processes or one-click install, manage node start/stop, and upgrade with config merge.

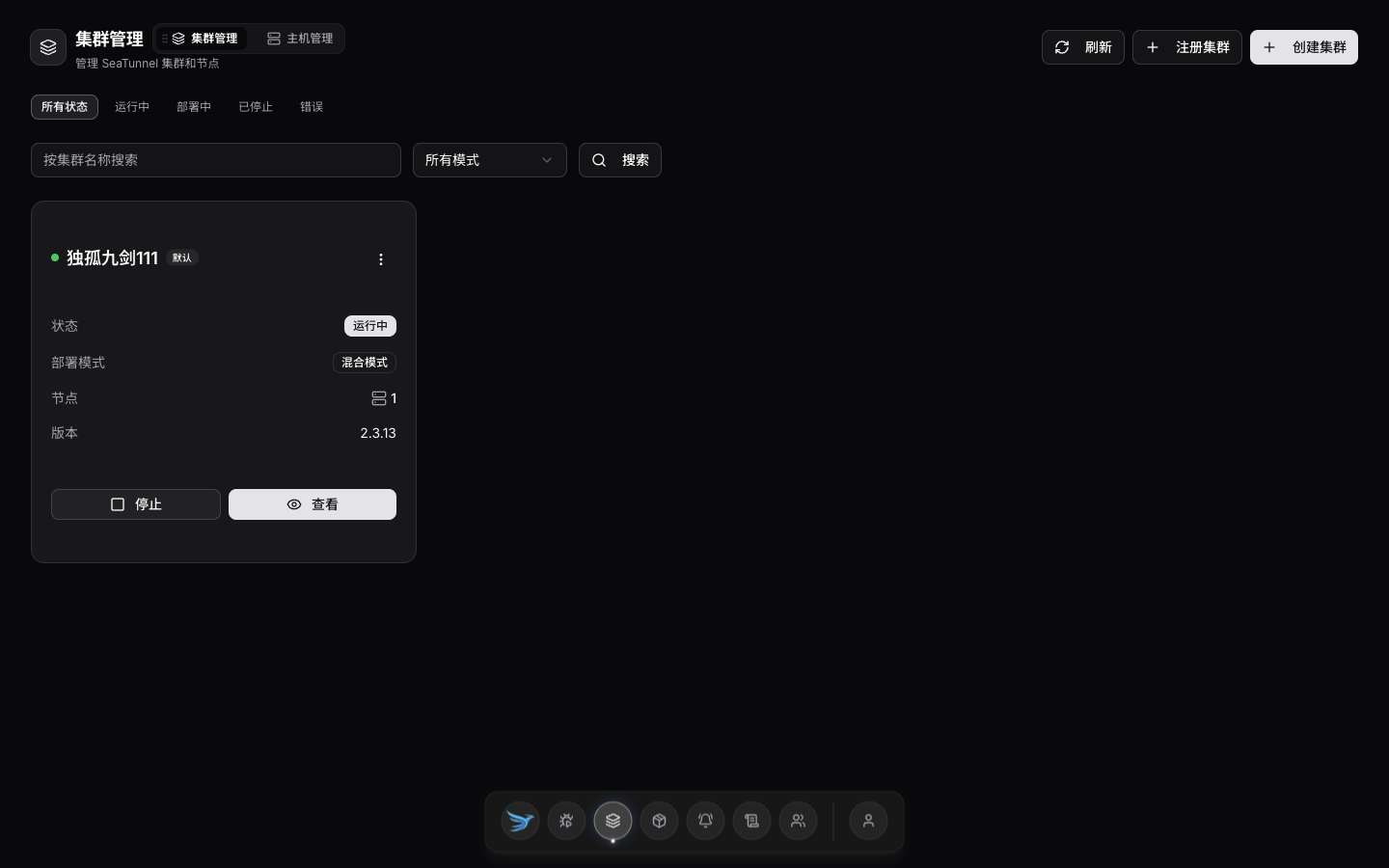

Open Cluster management in the Web UI. The list can be filtered by running, deploying, or stopped; cards show deployment mode, node count, and version. You can open details or stop a cluster.
Creating a cluster only registers name, version, and deployment mode—it does not start SeaTunnel processes. You also need to connect an online host, then choose to adopt existing processes or one-click install.
Choose an onboarding path
| Path | When to use | What to do next |
|---|---|---|
| Adopt existing processes | SeaTunnel is already running on the host | Create cluster and nodes, discover processes, then bind |
| One-click install | Install a new SeaTunnel cluster on the host | Prepare the package, select host and roles, pre-check, then install |
Deployment mode and status
| Concept | Values / default | Description |
|---|---|---|
| Deployment mode | Hybrid / Separate | Hybrid: Master+Worker in one process; Separate: independent Master / Worker processes |
| Node role | Master, Worker, Master/Worker | Hybrid mode commonly uses Master/Worker |
| Cluster status | Created → Deploying → Running / Stopped / Abnormal | Just created shows as "Created" |
| Node status | Pending / Installing / Running / Stopped / Abnormal; may also show offline | Offline means stx-agent on the host for that node is not online |
| Default ports | Master communication 5801, API 8080, Worker communication 5802 | Can be overridden per node |
Adopt existing processes
- Cluster management → Create cluster: name, hybrid or separate, SeaTunnel version.
- Add nodes: specify online host, role, install directory, and ports (defaults per table above).
- Trigger discovery on the host or node (stx-agent scans local SeaTunnel processes).
- After confirming the bind, the node should show process PID and actual install directory.
When multiple processes run on one machine, verify role and ports carefully to avoid binding a Worker to a Master node record.
One-click install
Package management in the Web UI must have an install package for the target version. You can upload or download first; connectors are handled in the Plugin marketplace.
Typical flow:
- Select target host and role (separate mode requires at least Master / Worker).
- Click Pre-check to verify the install directory is writable and ports are free.
- Submit install: push package → extract to install directory → write cluster discovery config → start by role.
- View install progress in the Web UI; on failure, Retry / Cancel.
Version upgrade
In cluster details, open Upgrade (or review past runs under Upgrade Records). The flow has three stages: Prepare → Config → Execute.
Prepare
- Choose the Target Version and confirm the Target Install Directory (defaults can follow the version).
- Prepare the target package in Package management and the required connectors in the Plugin marketplace. The UI prompts you to fill gaps when assets are missing.
- Click Run Precheck. After it passes, continue to Config. If you change the target version or directory, Rerun Precheck first.
During upgrade, the cluster switches to the target connector JARs and incrementally applies lib / plugins dependencies from the locally prepared target plugins. Same-named base JARs that ship with the install package are kept.
Config merge
The page title is Configuration Difference Handling. The system compares the current cluster config with the target version config; it does not auto-pick a side for conflicting lines.
| Area | Role |
|---|---|
| Config file list | Switch files; files with diffs show a count, others are marked as no diff |
| Old Version Config | What the cluster currently uses; Use Old File applies the whole file |
| Merged Result | Final config that will be applied; you can edit it directly |
| New Version Config | What the target version provides; Use New File applies the whole file |
For conflicting lines, choose Use Old Value / Use New Value. You can Create Upgrade Plan only after every difference is resolved.
Some files may auto-merge when there is no real conflict; you still confirm the overall result. While any item stays Pending Choice / Decision Required, the plan cannot be created.
Execute
After creating the plan, review version, package, node targets, and steps, then Start Execution. On the execute page you can see:
| Panel | Description |
|---|---|
| Completion | Overall task progress |
| Execution Details | Step Tree or node execution status |
| Log Panel | Persistent logs filtered by step, level, and node |
Closing steps often include health check, availability verification, and complete. When a task finishes, reopen it from Upgrade Records in cluster details, or Restart Execution on the same plan (creates a new task; old logs remain).
Savepoint or pause critical sync jobs first so you can recover positions if the upgrade fails or rolls back.
Day-to-day operations
In cluster details / node list, for the whole cluster or a single node:
| Operation | Description |
|---|---|
| Start / Stop / Restart | Issued through stx-agent |
| View logs | Pull engine logs from the node for start/stop and job issues |
| Add node | Single add or batch add on the same host; pre-check available before add |
| Delete node / Delete cluster | Check running jobs first; a host linked to cluster nodes cannot be deleted from host management |
| Upgrade | See Version upgrade above |
For critical sync jobs, Savepoint or pause first, then stop or rolling restart to preserve recovery position.
Boundary with host management
- Host: machine + whether stx-agent is connected, resource heartbeats
- Cluster: SeaTunnel topology and process lifecycle
- Whether a node is operable depends on both node status and whether the host is online
