Package Management
Download or offline import/export SeaTunnel archives and local plugins for install, upgrade, and air-gapped import.
Web UI Packages & Plugins → Package Management (/packages). This page stores SeaTunnel release archives (.tar.gz), not the STX installer itself and not connector JARs (see Plugin Marketplace).
Archives are stored on the machine that runs STX Server first, then stx-agent pushes them to managed hosts during one-click install or upgrade.
Why offline import / export exists
Package Management (releases) and the Plugin Marketplace (connectors) need outbound access to mirrors for day-to-day downloads. Once the STX install machine is offline, those pages cannot fetch new archives.
The page header exposes a single entry Offline Import / Export:
| Tab | What it does |
|---|---|
| Import | Auto-detect by filename: offline asset bundle, or a single official *-bin.tar.gz |
| Export | Pack the local package (± plugins) into stx-seatunnel-offline-*.tar.gz |
To upload a source archive or set a custom version, open the full upload form from the Import tab (the former “Upload Package” flow).
Separately, you still need an STX offline install bundle for the control plane itself (see Offline install). The STX installer and the SeaTunnel asset pack are different artifacts; neither replaces the other.

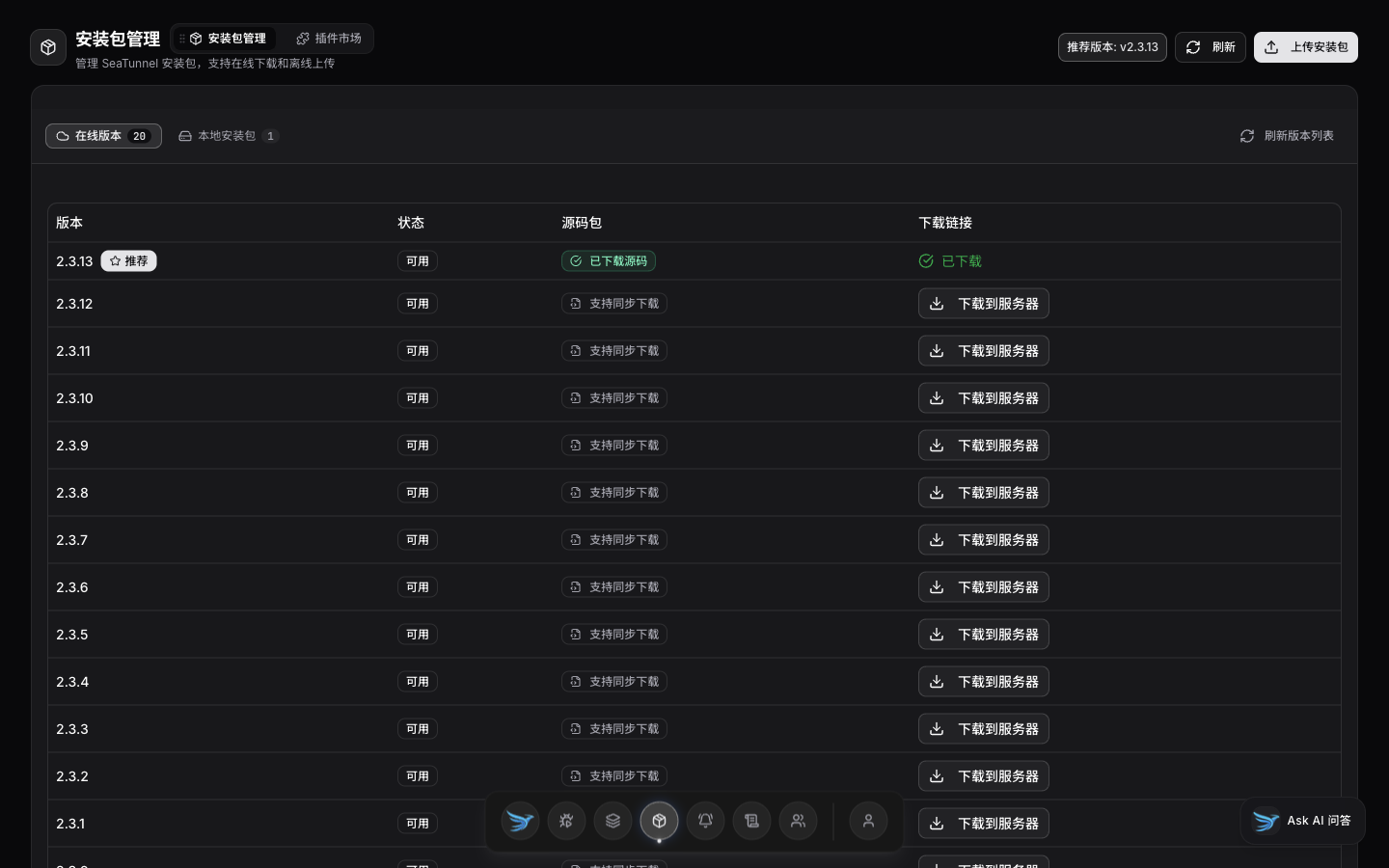

Online Versions and Local Packages
| List | What it does |
|---|---|
| Online Versions | Browse versions on mirrors; use Download to Server to pull them locally |
| Local Packages | Show archives already downloaded or imported; delete them, or add / replace an optional source archive |
The page header shows the Recommended Version. Use Refresh Versions when the catalog needs updating.
| Column (online) | Meaning |
|---|---|
| Version | SeaTunnel version; the recommended one is marked Recommended |
| Status | Whether the version can be downloaded |
| Source package | Whether the source archive is present, or can be downloaded with the binary |
| Download | Download to Server, progress, or Downloaded |
In the download dialog, pick a mirror (for example Aliyun, Huawei Cloud, or Apache) and optionally download the source archive at the same time. The source archive is optional and mainly used for AI Agent troubleshooting.
Offline import
Open Offline Import / Export → Import, then pick a .tar.gz:
| Filename | Detected as | Result |
|---|---|---|
stx-seatunnel-offline-{version}.tar.gz | Offline asset bundle | Writes the local package and plugins from the bundle (if any) |
apache-seatunnel-{version}-bin.tar.gz | Single official package | Local package only — no plugins |
Importing an official bin alone does not include connectors; download them on a networked STX and pack them into an asset bundle, or handle plugins separately.
Offline export (asset bundle)
Open Offline Import / Export → Export. Packing never fetches from the internet; missing local files are not included.
On a networked STX
- Start and open a STX Web UI that can reach mirrors (reuse an existing install).
- Download to Server the target version (or import an official bin).
- (Optional) In the Plugin Marketplace, download connectors for the same version.
- Export → pick version → optionally include local plugins → Pack and download.
- Separately prepare an STX offline install bundle (Offline install) and copy both archives to the offline host.
CLI: stx package offline-bundle create <version> --include-plugins --confirm, then stx package offline-bundle download ….
On the offline host
- Install and start STX with the STX offline bundle (
--offline). - Offline Import / Export → Import, select the exported asset bundle.
- Local packages / plugins appear in their lists; then run one-click install or install plugins as usual.
| Artifact | Purpose |
|---|---|
| STX offline install bundle | Install STX Server / Web UI offline |
| SeaTunnel offline asset bundle | Fill local packages / plugins on that STX |
Asset bundle layout
Exported name looks like stx-seatunnel-offline-2.3.13.tar.gz. After unpacking:
stx-seatunnel-offline-2.3.13/
├── MANIFEST.json # format, version, package checksum, plugin list
├── packages/
│ ├── apache-seatunnel-2.3.13-bin.tar.gz # required
│ └── apache-seatunnel-2.3.13-src.tar.gz # optional (if checked and present locally)
└── plugins/
└── 2.3.13/ # optional (if “Include local plugins” was checked)
├── connectors/ # connector JARs
├── metadata/ # plugin metadata
└── plugins/ # auxiliary deps (e.g. JDBC drivers)
MANIFEST.json uses format stx-seatunnel-offline-bundle/v1. Import writes into the local cache from the manifest; you usually do not unpack by hand.
Relation to cluster install and upgrade
| Scenario | Requirement |
|---|---|
| One-click install · online | If the target version is missing locally, install may download it as needed |
| One-click install · offline | The target version must already exist under Local Packages (import an asset bundle or a single bin) |
| Cluster upgrade | Prepare the target version locally before upgrade; the UI prompts you to open package management when it is missing |
The default node install directory looks like /opt/seatunnel-{version}. See Cluster management for install and upgrade steps.
